Crane Drum Rotator Handle 400kg

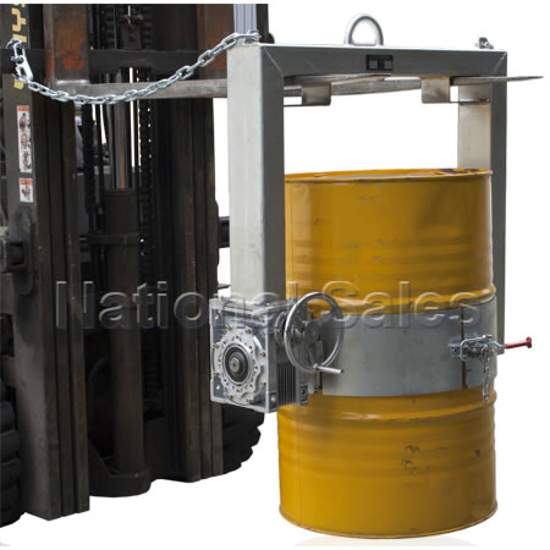

The EW-DR-H400 Drum Rotator is designed to lift and rotate a 205 litre steel drum 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the handle driven gearbox which locks the drum in position when the operator stops turning the handle, preventing dangerous and uncontrolled movements. In Stock Perth
Part No: EW-DR-H400
*
$1,320.00 excl GST

Crane Drum Rotator Handle 400kg

The EW-DR-H400 Drum Rotator is designed to lift and rotate a 205 litre steel drum 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the handle driven gearbox which locks the drum in position when the operator stops turning the handle, preventing dangerous and uncontrolled movements.

Features:
• Empties a standard 205 litre drums with minimal effort
• For use with either overhead crane of forklift
• Suitable for drum rotation up to chest height
• Rotation carried out via a hand wheel
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release during tipping cycle
• Large worm drive gearbox provides automatic braking
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish


Specfications:

  • Working Load Limit (kg): 400
  • Rotation: 360deg
  • Rotation Shaft CL to Lifting Eye: 810mm
  • Fork Pocket Size (mm): 160 x 65mm
  • Fork Pocket Centres (mm): 615
  • Unit Weight (kg): 80
