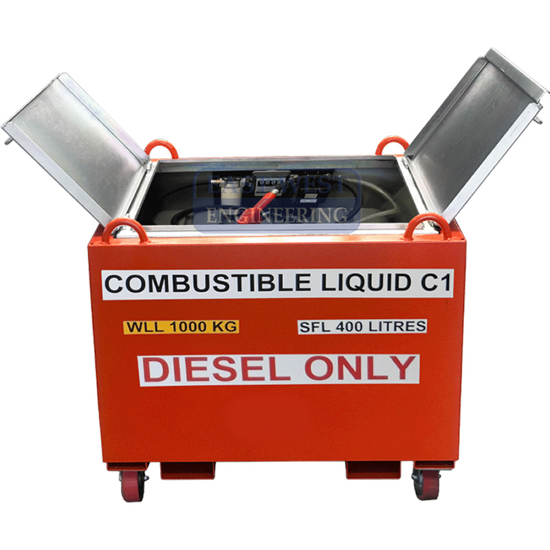

Diesel Transfer Tank 400 L

This 240-volt Diesel Transfer Tank is a spill-proof, economical solution to your fuel transfer requirements. The heavy-duty, portable enclosure contains a diesel transfer fuel pump with suction filter, fuel usage meter, replaceable in-line 30 micron particulate fine filter, 4 metre long delivery hose and auto cut-out nozzle. All signage provided is standard C1 COMBUSTIBLE LIQUID storage.
Part No: EW-DTT400
*
Call for pricing

Diesel Transfer Tank 400 L

This 240-volt Diesel Transfer Tank is a spill-proof, economical solution to your fuel transfer requirements.  The heavy-duty, portable enclosure contains a diesel transfer fuel pump with suction filter, fuel usage meter, replaceable in-line 30 micron particulate fine filter, 4 metre long delivery hose and auto cut-out nozzle.  All signage provided is standard C1 COMBUSTIBLE LIQUID storage.
Description:
  • Heavy duty, waterproof enclosure allows outside placement and virtually eliminates the chance of accidental penetration
  • Internally fitted with a tough 400L poly diesel tank
  • Tamper proof, lockable double door provides security against theft
  • Tie down points secure the tank during transport
  • Easy access to pump and internal tank via the double lift-up doors
  • Zinc bund has a minimum 500 litre spill capacity should a spill occur
  • Fitted with crane lugs and fork pockets for easy relocation, even when full
  • Wheels fitted standard. Can be quickly removed if not required
240-Volt (DC40240):
  • AC 240v motor x 0.50w motor, 2800 RPM
  • Flow rates up to 45 litres per min, includes built in bypass to tank
Specification:
  • Working Load Limit (WLL) : 1000kg
  • Capacity : 400 litres
  • Overall Dimensions : 1155 x 1155 x 1075mm
  • Unit Weight : 250kg
  • Fork Pocket Size : 160 x 70mm
  • Fork Pocket Centres : 600mm
