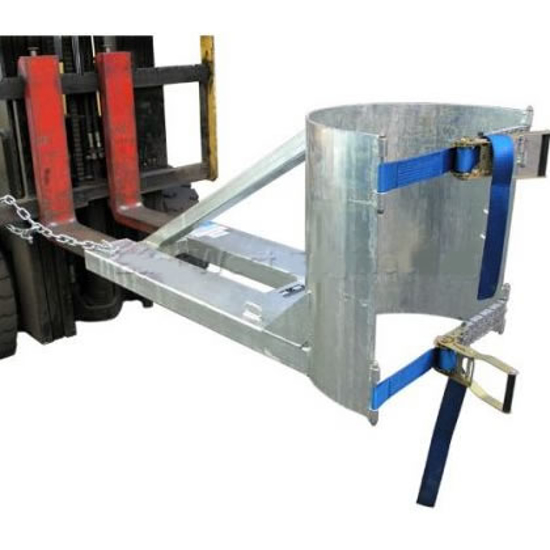

Drum Lifter with Plastic Barrel Option

The EW-DL1000 Drum Lifter can be coupled with the PBO Plastic Barrel Option for use with plastic drums.
Part No: EW-DL1000-PBO
*
$2,410.00 excl GST

The EW-DL1000 Drum Lifter can be coupled with the PBO Plastic Barrel Option for use with plastic drums.

The type DL1000 Drum Lifter would be consideredthe safest Drum Lifter available. This unit ensures 205litre steel Drums are moved with 100% security. TheDrum is quickly clamped into the support via the dualChain Belly Strap & eccentric lock. A further safetycatch prevents accidental release.

  • Safe Working Load (SWL) 1000kg
  • Load Centre 1160mm nominal
  • Unit Weight 60kg
  • Pocket Size 165 x 65mm
  • Pocket Centres 335mm
  • HCG 710mm
  • VCG -25mm
Products specifications
FinishZinc
SWL (kg)1000
Pocket Size (mm)165 x 65
Pocket Centres (mm)335
Load Centre (mm)1160
Horizontal Centre of Gravity (mm)335
Vertical Centre of Gravity (mm)-25
Unit Weight (Kg)60
