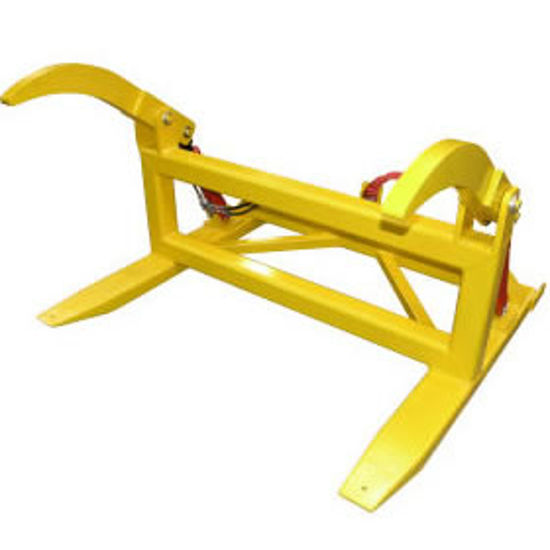

Forklift Grab Attachment with 1300mm Load Centre

The GA Grab is designed as a slip on Forklift attachment, and is used to securely transport poles or pipes, with models available to handle from 170mm through to 1200mm diameter.
Part No: EW-GA12
*
Call for pricing

Forklift Grab Attachment with 1300mm Load Centre

The GA Forklift Grab Attachment is a slip on attachment meaning that it slides straight onto your existing fork lift tynes.

It is designed to grab and securely transport poles or pipes ranging in size from 170mm right through to 1200mm diameter.

The hydraulic grab requires one additional hydraulic power take off on your forklift but comes supplied with connection hoses with quick connect couplings. Painted finish in safety yellow enamel pain.

Products specifications
FinishPainted
SWL (kg)2500
Pocket Size (mm)165 x 60
Pocket Centres (mm)931
Load Centre (mm)1300
Minimum Pole Diameter (mm)300
Maximum Pole Diameter (mm)1200
Horizontal Centre of Gravity (mm)580
Vertical Centre of Gravity (mm)455
Length (mm)1800
Height (mm)1376
Width (mm)1112
Unit Weight (Kg)375
