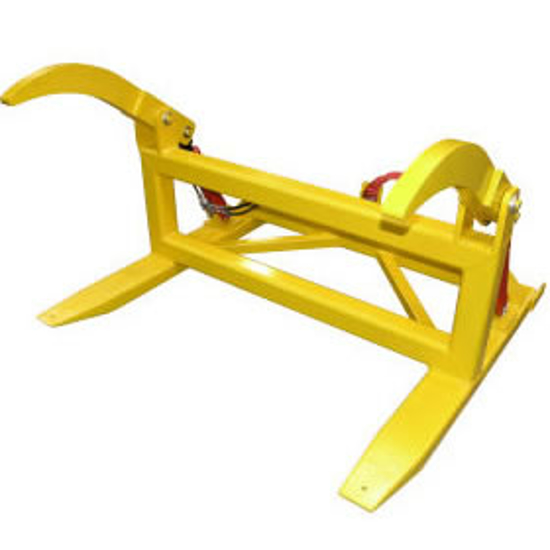

Forklift Grab Attachment with 950mm Load Centre

The GA Grab is designed as a slip on Forklift attachment, and is used to securely transport poles or pipes, with models available to handle from 170mm through to 1200mm diameter.
Part No: EW-GA09
*
$5,850.00 excl GST

The GA Forklift Grab Attachment is a slip on attachment meaning that it slides straight onto your existing fork lift tynes.

It is designed to grab and securely transport poles or pipes ranging in size from 170mm right through to 1200mm diameter.

The hydraulic grab requires one additional hydraulic power take off on your forklift but comes supplied with connection hoses with quick connect couplings. Painted finish in safety yellow enamel pain.

Products specifications
FinishPainted
SWL (kg)2500
Pocket Size (mm)165 x 60
Pocket Centres (mm)931
Load Centre (mm)950
Minimum Pole Diameter (mm)170
Maximum Hydraulic Flow900
Horizontal Centre of Gravity (mm)420
Vertical Centre of Gravity (mm)300
Length (mm)1300
Width (mm)1112
Height (mm)985
Unit Weight (Kg)265
