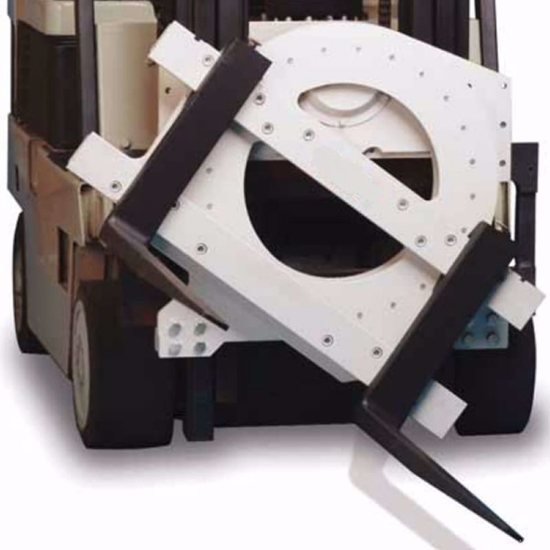

Forklift Rotator Class 2 2045kg at 600mm 360 degree Supplied with 1220mm Forks

Capacity on load centre Q1 (kg): 2045, Load centre LC (mm): 500, Maximal fixed frame width B (mm): 1040, Minimum opening range over the forks W8 (mm): 210, Maximum opening range over the forks W9 (mm): 895
Part No: EW-FR2-2045
*
Call for pricing
Forklift Rotator Class 2 2045kg at 600mm 360 degree
Supplied with 1220mm Forks
Mounting class 1 (ISO 2328): FEM2
Capacity on load centre Q1 (kg): 2200
Load centre LC (mm): 500
Maximal fixed frame width B (mm): 1040
Minimum opening range over the forks W8 (mm): 210
Maximum opening range over the forks W9 (mm): 895
Lost load LL (mm): 170
Horizontal centre of gravity HCG (mm): 80
Vertical centre of gravity VCG (mm): 286
Weight of the attachment G (kg): 250
Model of the attachment: PRC22D
Brand of the attachment: CAM
Description of the attachment: ROTATOR WITHOUT SIDESHIFTER
Rotation angle RA (°): 360
Rotation speed recommended by oil flow rate RS (Rpm): 480
Maximum rotation torque RT-MAX (N.m): 5500
Indicated pressure of the torque P-RT (Bar): 140
Height of the frame according type/model H7 (mm): 775
Maximal distributor pressure: 18
Recommended oil flow rate (l/min): 25
Hydraulic functions: 1
Rotation stop at 180° (kit) available on request: yes
Fork bar assembly and locking fork pads included: yes
Fishing industry version on request: yes
Pin-type fork models available on request: yes
Different length of fork bars on request: yes
Note: Price excludes forks. It is recommended that only forks with a 3rd hook are used on these rotators. Please ask for fork price.

*** In Stock - Immediate Delivery ***
