Laydown Concrete Kibble 2.0 cum - Clamshell Gate and Funnel with Lay Flat Hose

Laydown Concrete Kibble 2.0 cum - Clamshell Gate and Funnel with Lay Flat Hose

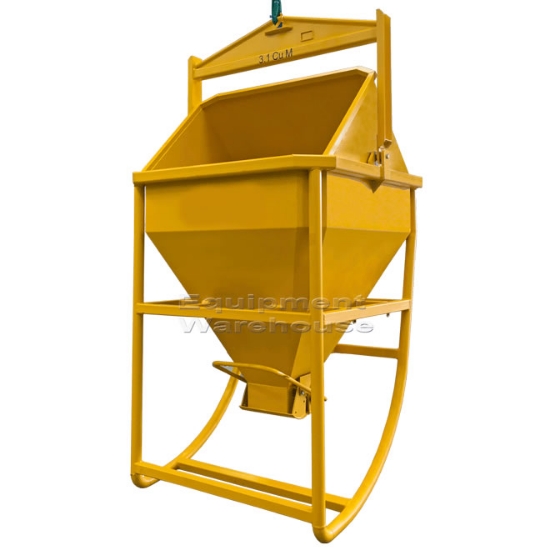

This Concrete Kibble is a heavy duty, roll-over style for easy transfer of concrete on site by overhead crane.

Features:

• Suits large applications with models available for up to 3cu.m capacity
• Roll-over (laydown) style allows filling from concrete dispensing chute
• Fitted with a lever operated 400mm x 400mm clamshell gate
• Removable concrete funnel with 2m lay-flat hose allows controlled flow when filling wall cavities, columns or narrow formwork
• Fork pockets fitted for transport around the work site
• Hydraulic Kibble Option available to remotely control kibble
• Enamel paint finish

Specifications:

• Volume Capacity (cu.m) : 2.0
• Working Load Limit (kg) : 5000
• Filling Height (mm) : 1380
• Laydown Dimensions (mm) : 2965 x 2010 x 2000
• Pocket Size (mm) : 185 x 85
• Pocket Centres (mm) : 750
• Unit Weight (kg) : 900
• Lay Flat Hose Dimensions (mm) : 200 diameter x 2000
