Manual Platform Stacker 400kg 1500mm Lift Height

Manual Platform Stacker 400kg 1500mm Lift Height

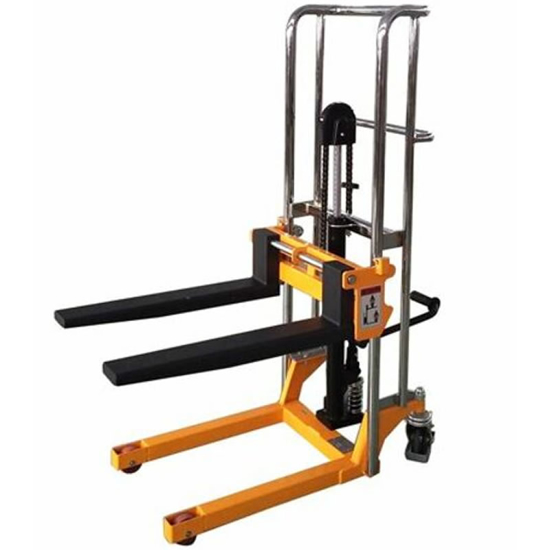

This manual platform stacker has adjustable forks and removable platform. Platform stacker has foot pedal brakes and two frame rollers and two steering rollers make sure the stacker stable and safe operation.

Specification:

• Capacity: 400kg
• Min-Max Lift Height: 85mm - 1500mm
• Overall Height: 1710mm
• Overall Length: 1100mm
• Overall Width: 580mm
• Fork Length: 650mm
• Single Fork Width: 100mm
• Inside Forks Width Range: 10mm - 345mm
• Outside Forks Width Range: 207mm - 540mm
• Platfork Size: 650mm x 576mm
• Support Legs Length: 580mm
• Support Legs Height: 76mm
• Inside Support Legs Width: 370mm
• Outside Support Legs Width: 470mm
• Single Support Legs Width: 50mm
• Unit Weight: 86kg
