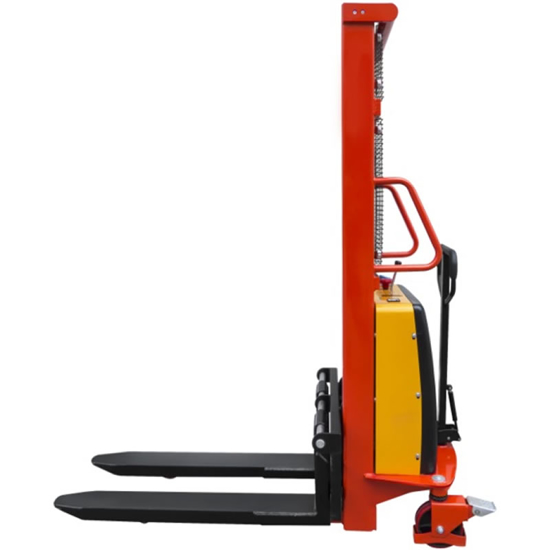

Semi Electric Pallet Stacker 1500kg 1600m Lift Height

Semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking. Using SPN is safe and efficient in factories, warehouses, and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.
Part No: EW-EPS1516
*
Call for pricing

Semi Electric Pallet Stacker 1500kg 1600m Lift Height

Semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking. Using SPN is safe and efficient in factories, warehouses, and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.

Specification:

  • Power: Battery
  • Capacity: 1500kg
  • Load center distance: 450mm
  • Lifting height: 1600mm
  • Load capacity on max height: 1500kg
  • Lowered mast height: 2077mm
  • Extended mast height: 2077mm
  • Fork length: 1100mm
  • Fork width: 550/640mm
  • Min fork height: 85mm
  • Overall length: 1800mm
  • Overall width: 760mm
  • Battery voltage: 12V/120Ah
  • The charger: 12V/20A
  • Lift motor: DC 12V/1.5Kw
  • Weight: 320kg
