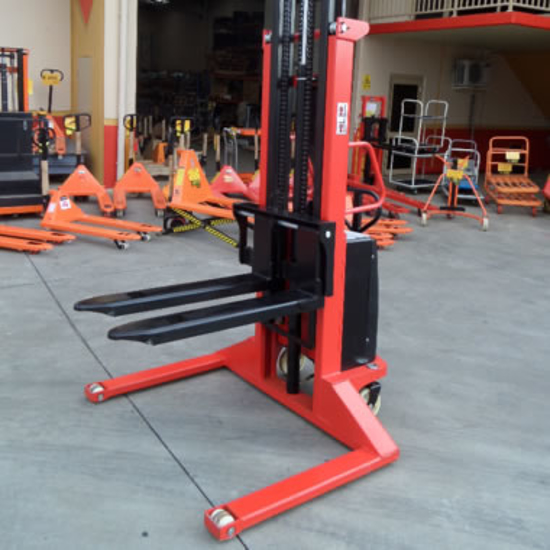

Semi-Electric Pallet Straddle Stacker 1500kg/3m

Semi-Electric Pallet Straddle Stacker 1500kg/3m

This semi electric straddle stacker is Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc. It has Extra heavy duty steel frame, Chain and Ram.

Description:

• Capacity: 1500kg, Lift height: 3000mm
• Electric lift and drop, manual push, pull,
• Extra heavy duty steel frame, Chain and Ram
• Suitable for all heavy and light loads
• Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc
• Economic and mobile work aid – can be used as a pallet jack as well
• Built in charger, just plug into power point
• Emergency stop switch

Specification:

• Turning radius 2800mm
• Single fork length 1000mm, width 150mm, thickness 65mm
• Min-Max Fork Height: 90mm-3000mm
• Adjustable forks width: 360mm - 690mm (Outer forks tips)
• Clearance between forks: 0 - 1100mm
• Clearance between legs: 1220mm, Overall legs width: 1460mm
• Overall dimensions - 173(L) x 146(W) x 208(H) cm - weight 424kg
• Shipping dimensions - Pallet - 173(L) x 146(W) x 222(H) cm - weight 454kg
