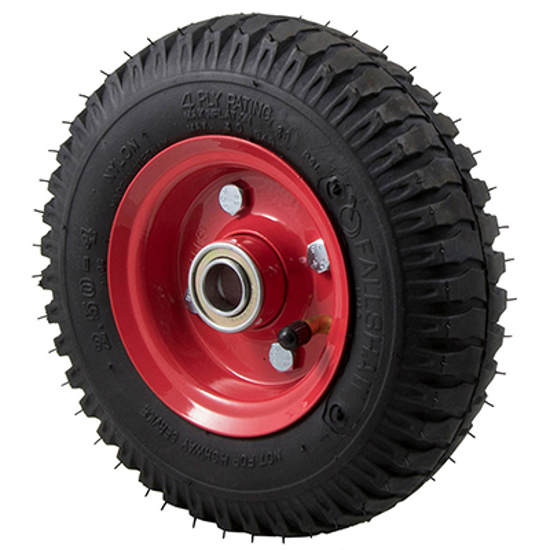

Steel Centred Pneumatic Wheels

Designed for strength and performance, our wobble-free steel centred wheels boast 4 ply tyres, rims manufactured from 1.8 mm steel—with the 650 x 8 manufactured from 2 mm steel, and supplied with premium butyl rubber seamless (butt-joined) tubes. Supplied with tubes for high performance and improved weight carrying capacity. These wheels can be retrofitted with tubes if original tyres are punctured*. Steel centred wheels provide higher load capacity and reliable long life performance. Sizes up to and including the 500x6 are manufactured from 1.8 mm steel, and the 650x8 is of 2 mm thick steel. Easy process to order: 1> Pick wheel tread patten - LUG, DMD, STR, IND, KNO, HWY and GRA 2> Pick Wheel Size - 220, 250, 265, 275, 320, 400, 330 and 420 3> Call Us with above info and quantities Scroll Down to see the many options / combinations.

Select Shipping Option Here

Call for pricing

Steel Centred Pneumatic Wheels

Premium Quality
Designed for strength and performance, our wobble-free steel centred wheels boast 4 ply tyres, rims manufactured from 1.8 mm steel—with the 650 x 8 manufactured from 2 mm steel, and supplied with premium butyl rubber seamless (butt-joined) tubes.

Supplied with tubes for high performance and improved weight carrying capacity. These wheels can be retrofitted with tubes if original tyres are punctured*. Steel centred wheels provide higher load capacity and reliable long life performance. Sizes up to and including the 500x6 are manufactured from 1.8 mm steel, and the 650x8 is of 2 mm thick steel.

Bearings for pneumatics:
‘Deep Groove’ shielded bearings (indicated in order codes with SB) fitted to a toughened heavy duty housing enables true running and extra strength. Deep groove bearings can last up to 3 times longer than normal pressed bearings.

Pneumatic tyres
4 ply (6 ply on HWY tread) for longer, rougher life. Many imports use as little as 2 ply thickness.

For wheels pulled or pushed at low speeds (not driven) the tread pattern is not critical. The following are standard. Other patterns can be offered by negotiation.

It is normal for air filled wheels to lose tyre pressure over time even if they are not being used and it’s important for your safety that you ensure that the wheels are pumped up to their recommended PSI before use—alternatively you can use our semi-pneumatic puncture proof wheels in applications that require wheels to never go flat.

For non-marking tyres, see our puncture proof wheels or plastic centred wheels.

Warning
Do NOT inflate over recommended tyre inflation pressure (30 psi).

Do NOT allow tyre pressure to drop bellow 20 psi or wheel may deflate and become very difficult to re-inflate. If you allow the tyre to go flat and you are unable to re-inflate it then you may need to buy an inner tube to be retro fitted to the wheel.

Note: Use of pneumatic wheels other than as recommended can be dangerous.

Pneumatic Tyre Treads: LUG, DMD, STR, IND, KNO, HWY and GRA
Bearings: 20mm, 3/4", 5/8" and 1"

Super Easy to Order / Get a Quote

Step 1 - Pick Tyre Treads and Rim and Bearing



LUG	DMD	STR	IND
	>

KNO	HWY	GRA

		Type	Diameter x Tread	Hub Bore	Max load at 8km/h	Max load at 15km/h	Order code	Rim and Bearing code
Model No	Tyre Tread		(mm)	(mm)	(kg)	(kg)
250X4LUG-SB20	LUG	250 x 4	220 x 54	60 x 20	120	100	250X4LUG*	SB20 -20mm
250X4LUG-SB34	LUG	250 x 4	220 x 54	60 x 19	120	100	250X4LUG*	SB34 - 3/4"
250X4LUG-SB58	LUG	250 x 4	220 x 54	60 x 16	120	100	250X4LUG*	SB58 - 5/8"
300X4DMD-SB20	DMD	300 x 4	250 x 70	60 x 19	140	110	300X4DMD*	SB20 - 20mm
300X4DMD-SB34	DMD	300 x 4	250 x 70	60 x 16	140	110	300X4DMD*	SB34 - 3/4"
300X4DMD-SB58	DMD	300 x 4	250 x 70	60 x 20	140	110	300X4DMD*	SB58 - 5/8"
350X4STR-SB20	STR	350 x 4	265 x 70	60 x 20	180	160	350X4STR*	SB20 - 20mm
350X4STR-SB34	STR	350 x 4	265 x 70	60 x 19	180	160	350X4STR*	SB34 - 3/4"
350X4STR-SB58	STR	350 x 4	265 x 70	60 x 16	180	160	350X4STR*	SB58 - 5/8"
250X6IND-SB10	IND	250 x 6	275 x 65	60 x 25.4	140	110	250X6IND**	SB10 - 1"
250X6IND-SB20	IND	250 x 6	275 x 65	60 x 20	140	110	250X6IND**	SB20 - 20mm
250X6IND-SB34	IND	250 x 6	275 x 65	60 x 19	140	110	250X6IND**	SB34 - 3/4"
250X6IND-SB58	IND	250 x 6	275 x 65	60 x 16	140	110	250X6IND**	SB58 - 5/8"
350X6KNO-SB10	KNO	350 x 6	320 x 80	60 x 25.4	200	180	350X6KNO**	SB10 - 1"
350X6KNO-SB20	KNO	350 x 6	320 x 80	60 x 20	200	180	350X6KNO**	SB20 - 20mm
350X6KNO-SB34	KNO	350 x 6	320 x 80	60 x 19	200	180	350X6KNO**	SB34 - 3/4"
350X6KNO-SB58	KNO	350 x 6	320 x 80	60 x 16	200	180	350X6KNO**	SB58 - 5/8"
400X8HWY-SB10	HWY	400 x 8	400 x 100	84 x 25.4	360	340	400X8HWY**	SB10 - 1"
400X8HWY-SB20	HWY	400 x 8	400 x 100	84 x 20	360	340	400X8HWY**	SB20 - 20mm
400X8HWY-SB34	HWY	400 x 8	400 x 100	84 x 19	360	340	400X8HWY**	SB34 - 3/4"
400X8HWY-SB58	HWY	400 x 8	400 x 100	84 x 16	360	340	400X8HWY**	SB58 - 5/8"
400X8KNO-SB10	KNO	400 x 8	400 x 100	84 x 25.4	220	200	400X8KNO**	SB10 - 1"
400X8KNO-SB20	KNO	400 x 8	400 x 100	84 x 20	220	200	400X8KNO**	SB20 - 20mm
400X8KNO-SB34	KNO	400 x 8	400 x 100	84 x 19	220	200	400X8KNO**	SB34 - 3/4"
400X8KNO-SB58	KNO	400 x 8	400 x 100	84 x 16	2200	200	400X8KNO**	SB58 - 5/8"
500X6GRA-SB10	GRA	500 x 6	330 x 125	84 x 25.4	220	200	500X6GRA**	SB10 - 1"
500X6GRA-SB20	GRA	500 x 6	330 x 125	84 x 20	220	200	500X6GRA**	SB20 - 20mm
500X6GRA-SB34	GRA	500 x 6	330 x 125	84 x 19	220	200	500X6GRA**	SB34 - 3/4"
500X6GRA-SB58	GRA	500 x 6	330 x 125	84 x 16	220	200	500X6GRA**	SB58 - 5/8"
650X8GRA-SB10	GRA	650 x 8	420 x 165	150 x 25.4	230	200	600X8GRA**	SB10 - 1"
650X8GRA-SB20	GRA	650 x 8	420 x 165	150 x 20	230	200	600X8GRA**	SB20 - 20m
650X8GRA-SB34	GRA	650 x 8	420 x 165	150 x 19	230	200	600X8GRA**	SB34 - 3/4"
650X8GRA-SB58	GRA	650 x 8	420 x 165	150 x 16	230	200	600X8GRA**	SB58 - 5/8"

* Also available with 15 mm precision bearings. Add -SQ15 to the end of the code.

** Also available with precision bearings: 20 mm (-SQ20), 25 mm (-SQ25), 3/4" (-SQ534), 5/8" (-SQ58) and 1" (-SQ10).

Step 2 - Call Us with above info and quantities
