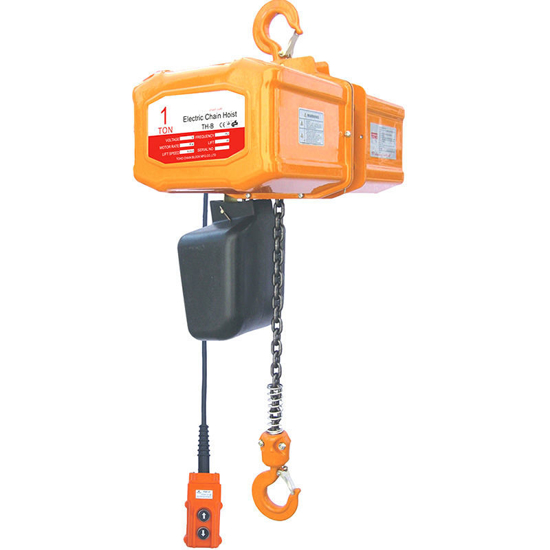

Toho Electric Chain Hoists Three Phase 1 Tonne 3M Lift

Toho Electric Chain Hoist with 1000kg capacity and 3m lift in 3 Phase. Load Limited, Thermal overload prevention, Lightweight, compact design with high efficiency motor, Pressed steel structure, high strength body, High tensile alloy steel top & bottom hooks
Part No: EW-TECH-3PH-2SP-0103
*
$2,790.00 excl GST

Toho Electric Chain Hoists Three Phase 1 Tonne (1000kg) 3M Lift

Features:
  • Load Limited
  • Thermal overload prevention
  • Lightweight, compact design with high efficiency motor
  • Pressed steel structure, high strength body
  • High tensile alloy steel top & bottom hooks
  • Grade 80 - 7.1mm Alloy Steel load chain
  • Limit switches fitted at top and bottom ends to prevent chain runout
  • 415V, 50Hz Dual speed Motor 1200 Watts. (3 Phase)
  • Complies with ASNZS1418.2 standard
Specifications:
  • Capacity : 1 tonne (1000kg)
  • Standard Lift M : 3
  • Running Test Load : 12.5 kN
  • Motor Power : 1.2 kW
  • No. of Chains : 2
  • Dia of Chains : 7.1 mm
  • Lifting Speed : 1.2/3.5
  • Net Weight : 58.3 Kg
